TECHNICAL DOCUMENTATION
Training Stand for Digital Animation and 3D Modeling – ANIM1-3
GENERAL INFORMATION
This training stand for digital animation, 3D modeling, and motion capture provides users with hands-on experience using professional hardware and software. The system supports a complete digital character creation cycle: from drawing on a graphics tablet, scanning and modeling 3D objects, to animating characters using hand, body, and facial motion capture. By leveraging virtual reality equipment and AI-powered tools, students can create interactive animations, educational videos, or even game content. A camera, studio lighting, and green screen enable live recording and integration, while professional audio recording ensures high-quality dubbing and sound effects. The stand is ideally suited for interdisciplinary projects involving media, information technology, art, and engineering.
EQUIPMENT CATEGORIES
| Description | Quantity |
| Graphics Tablets – 22″ 4K touch displays with stylus for direct drawing and coloring. | 12 |
| 3D Scanners – Portable and desktop devices for accurate 3D scanning of physical objects. | 2 |
| Headsets with Microphones – Closed-type headsets with integrated microphones for professional recording and communication. | 12 |
| Desktop Computers – High-performance workstations with i9 processors, 32 GB RAM, and SSDs, optimized for 3D creation. | 12 |
| Monitors – 43″ UHD monitors with USB-C and wide color gamut for professional work. | 12 |
| Webcams – 4K resolution cameras with auto lighting adjustment and HDR technology. | 12 |
| Motion Tracking Gloves – Inertial sensor gloves for animating hand movements. | 12 |
| Virtual Reality Equipment – Standalone VR headsets with controllers and spatial tracking. | 12 |
| Hand and Face Animation Software – Software for real-time hand and facial expression animation. | 12 |
| Adobe Creative Suite – Set of professional design and video applications. | 12 |
| Video Camera – Lightweight, interchangeable lens camera with professional video capabilities. | 1 |
| LED Light Kit – Two LED lights with adjustable brightness and stands for studio lighting. | 2 |
| Green Screen – Mobile chroma key screen for changing backgrounds in video recordings. | 1 |
| Full-Body Motion Capture Suit – Inertial suit for full-body motion tracking and animation. | 1 |
| Facial Motion Capture – Facial expression tracking using a dedicated mobile app. | 1 |
| AI-Based Animation Software – Character animation tool powered by artificial intelligence. | 12 |
| 3D Modeling Software – Free and open-source program for modeling, sculpting, and animation. | 12 |
| Control Panel – Button-based controller for quick access to tools and actions. | 1 |
| Audio Recording Equipment – USB microphone for high-quality voice and sound capture. | 1 |
| Training Desk – Individual workstations with integrated cable management and equipment holders. | 12 |
| Training Materials – Prepared text and video content streamed to a smart screen with teacher annotation capability. | 1 |

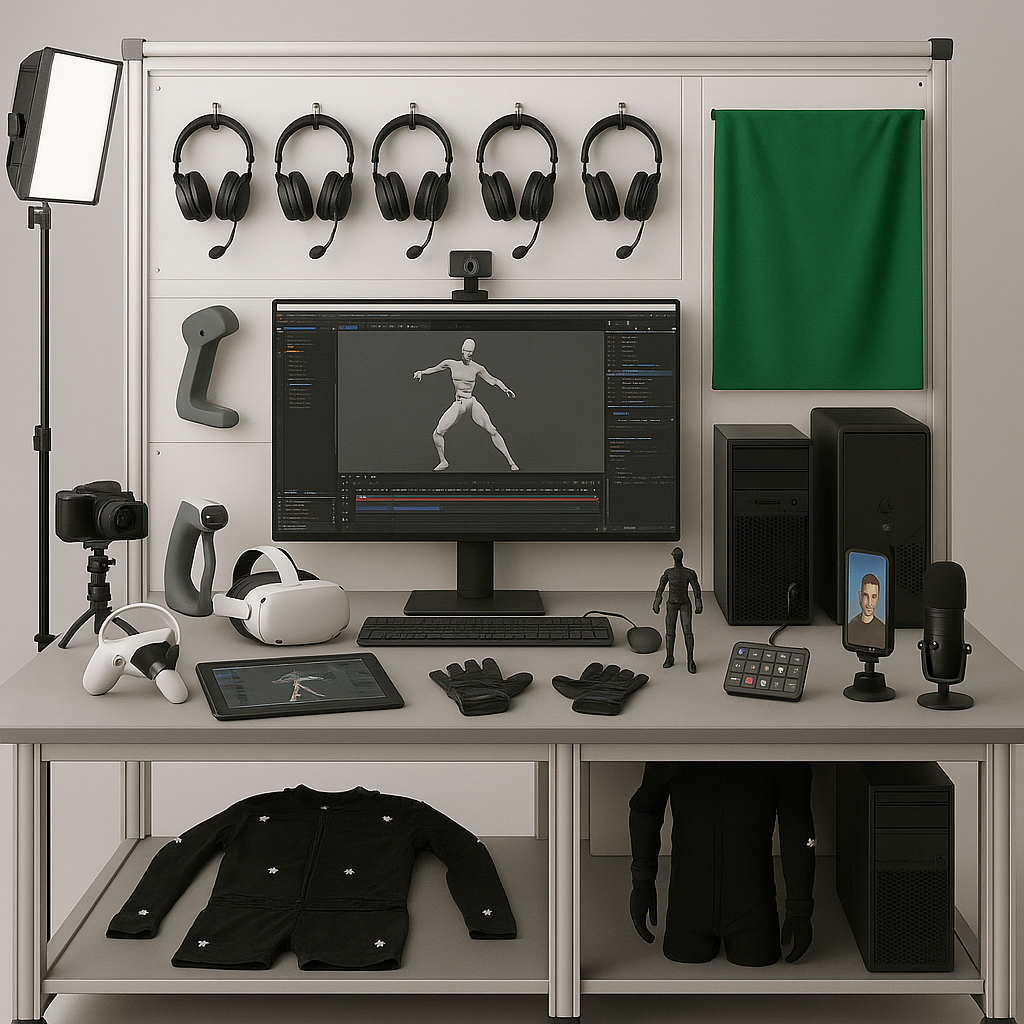

ALL EQUIPMENT IS INTEGRATED INTO A COMPREHENSIVE STAND SYSTEM:
Computer and Visualization Equipment
Powerful desktop towers with next-generation multi-core processors, large RAM, and SSDs for smooth operation with graphic, video editing, and 3D modeling applications.
Ultra-high definition (UHD) monitors with wide color gamut, ideal for precise visual content work.
Interactive graphics tablets with built-in screens, pressure and tilt-sensitive, enabling natural drawing and retouching directly on the screen.
High-quality 4K webcams for live streaming and facial motion capture.
Professional closed-back headphones with directional microphones for clear voice recording, even in noisy environments.
Studio-grade USB microphones with directional pickup, ideal for voiceovers and podcasts.
Motion Capture and VR Equipment
Hand motion capture gloves with integrated sensors, capturing each finger’s movement in real time.
Full-body motion capture suit with sensors covering all major joints, suitable for real-time animation.
VR headsets with motion tracking for creating and interacting with virtual environments.
Smartphone with specialized app for facial motion tracking and transferring to 3D models.
Visualization and Filming Equipment
DSLR-type video camera with a large sensor and interchangeable lenses for high-quality filming and streaming.
Compact, programmable control panel for quick broadcast control and scene switching.
Professional LED studio lights with adjustable color temperature and intensity.
Compact foldable green screen for chroma key effects in video recordings.
Software Used
Specialized software for glove and body motion capture, transferring animation signals.
Facial motion animation software suite supporting real-time tracking and integration with digital characters.
Commercial licenses for graphic design, video editing, layout, and animation software packages.
AI-powered animation software for animating 3D characters using physics-based models.
3D modeling, sculpting, texturing, and animation software widely used in education and industry.
