Smart Device Repair and Diagnostics Stand – NETO1-2

Description

TECHNICAL DOCUMENTATION

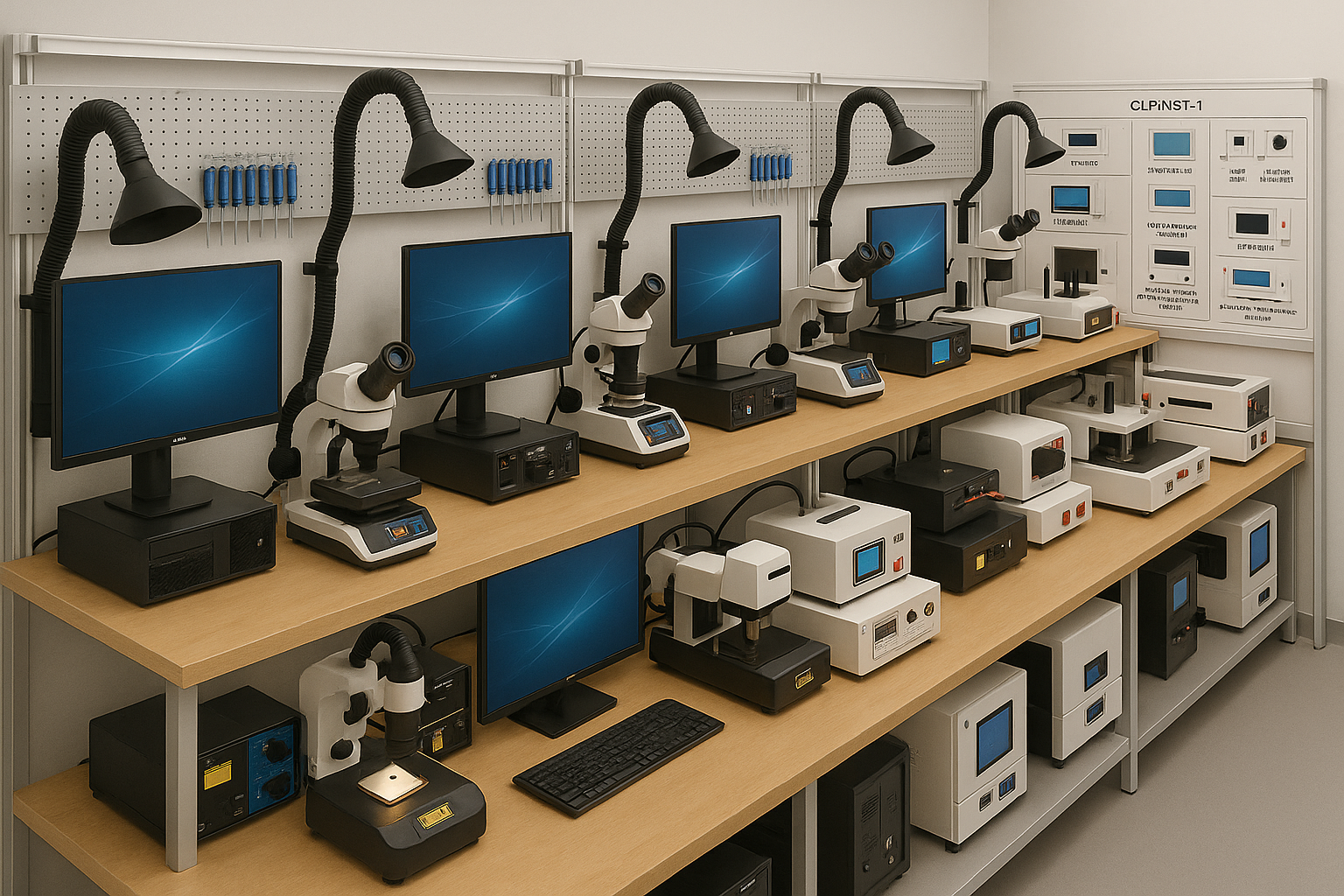

Smart Device Repair and Diagnostics Stand

The training stand is designed to prepare students in the field of smart device maintenance, diagnostics, and repair. The system is tailored for vocational education and includes soldering, diagnostics, screen restoration, microscopic inspection, laser disassembly, laminating, component polishing, and other specialized processes.

Functional Areas of the Training Stand

− Soldering tasks, including hot air soldering and temperature calibration

− Measurement and diagnostics of electronic components using multimeters, oscilloscopes, and thermal imagers

− Microscopic inspection and quality control

− Use and analysis of power supplies

− Fume extraction and ensuring a safe work environment

− Testing, freezing, and separation of screens

− Laser removal of screens and glass

− Laminating, bubble removal, UV glue curing

− Automatic polishing of display surfaces

− Battery and chip testing, reading, and configuration

− Electrostatic discharge (ESD) protection using antistatic surfaces

− Workplace ergonomics and documentation management

Application in Training

− The training stand is designed to prepare students or trainees to diagnose common and advanced electronic faults

− Use professional equipment to maintain phones, tablets, laptops, and other smart devices

− Restore displays, replace components, inspect soldering quality, and operate microscopes and laser tools

− Conduct reliable testing of power supply, thermal control, and display technologies

System Composition

Component / Function	Quantity
Soldering workstations with stations and heating	15
Oscilloscopes with multimeters	15
Microscopy workstations	15
Laboratory power supplies	15
Fume extraction units	15
Screwdriver sets	15
Computer workstations	15
High-resolution displays	15
Screen testing modules	15
Screen separation devices (based on cooling principle)	3
Laser disassembly stations	3
Back cover removal laser devices	3
Glass and screen refurbishment lasers	3
Laminating equipment with bubble removal	2
UV glue curing boxes	2
Automatic polishing systems	2
Screen laminating equipment for curved/flat screens	2
Electronics repair training stand with tools	1
Specialized workbenches	15
Vacuum pressing equipment for screens	2
Soldering temperature calibration module	1
BGA soldering equipment	1
Ultrasonic cleaning baths	2
Component diagnostic thermal imagers	1
Antistatic surfaces with grounding	4
Device startup / power supply modules	2
Battery testing and programming modules	1
Chip reading/programming module	1
